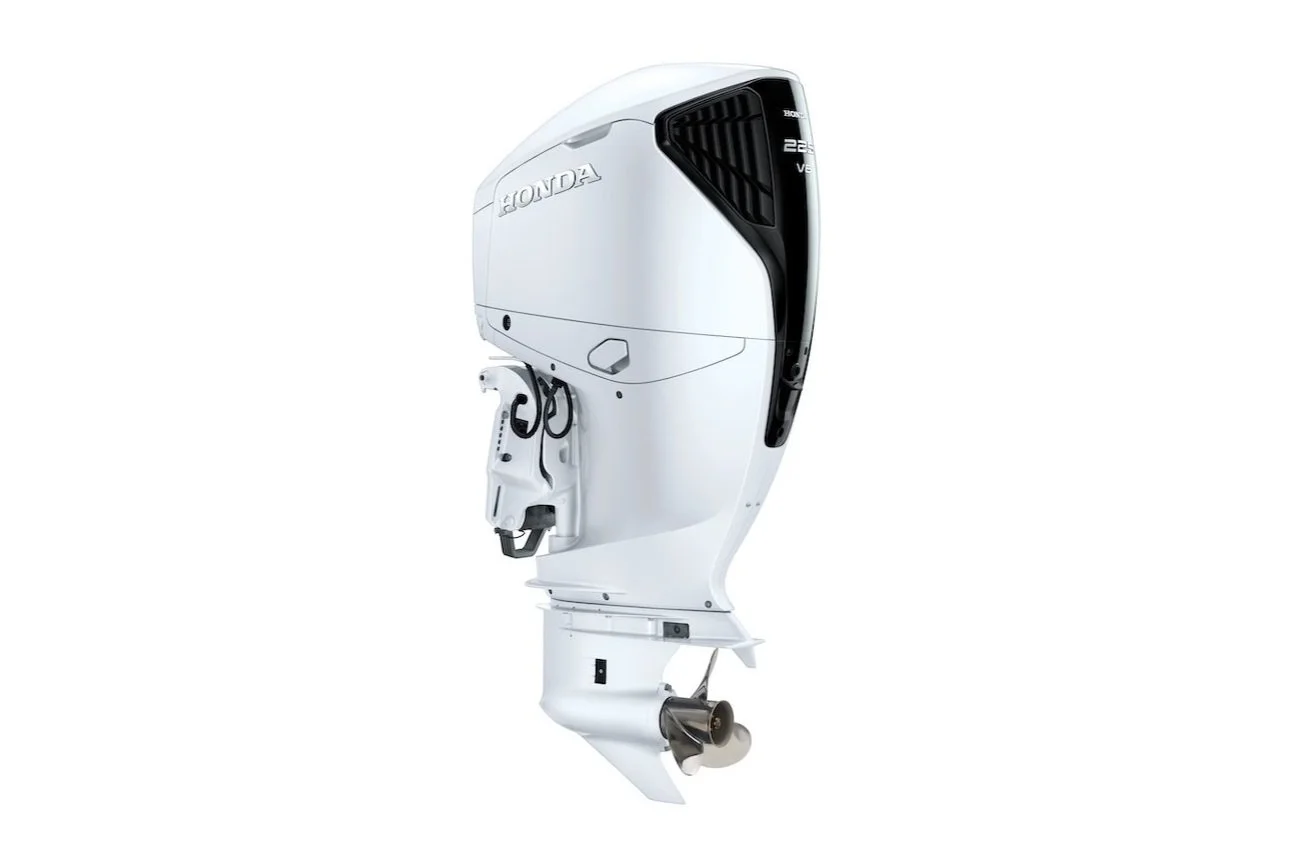

Engine: BF225

Type: 4-Stroke, SOHC, 60° V6, 24 Valve

Displacement: 3,583 cc (219 cubic inches)

Bore & Stroke: 89 x 96 mm (3.5 x 3.8 in.)

Full Throttle RPM Range: 5,300-6,300 RPM

Rated Power: 225 HP @ 5,500 RPM

Cooling System: Water Cooled

Fuel Delivery: Programmed Fuel Injection

Ignition System: MicroComputer Programmed

Starting System: Electric

Exhaust: Through Hub

Lubrication: Wet Sump

Trim Range: -4° to +16°

Tilt Range: 68°

Drive

Gear Ratio: 2.00:1

Gear Shift: F-N-R

Equipment

Alternator (Electric Start): 90-Amp @12v

Battery Charging Power: 60 Amps @12v

Propeller: Optional

Power Tilt: NA

Power Trim & Tilt: Standard

Gas Assisted Tilt: NA

Oil Pressure Alert: Standard

Temperature Alert: Standard

Rev-Limiter: Standard

Speedometer Pickup: Standard

Dimensions

Overall Width: 666 mm/27 inches

Transom Height

L Type: 508 mm/20 inches

X Type: 635 mm/25 inches

XX Type: -

Dry Weight

L-Type: 278 kg/613 lbs

X-Type: 286 kg/631 lbs

XX-Type: -

Emissions

CARB 2025 Rating: 3 Stars
