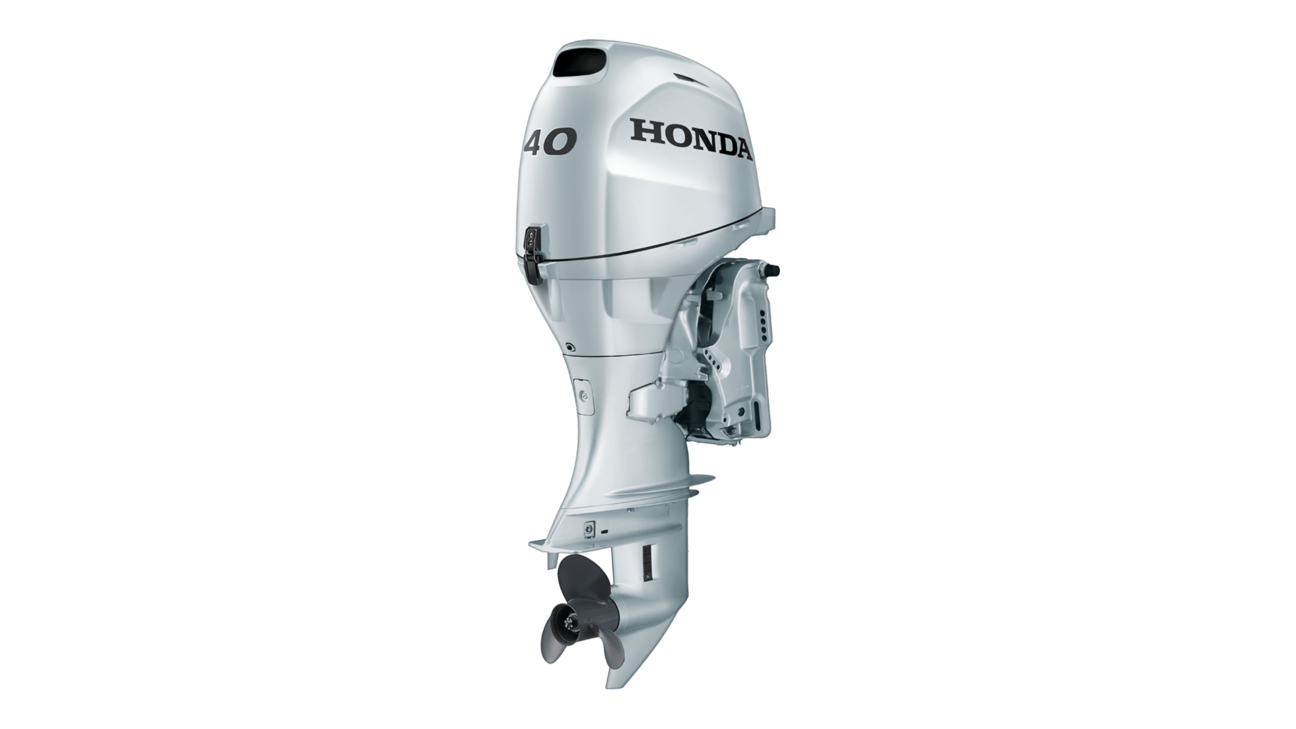

Engine: BF40

Type: 4-Stroke SOHC, 3 Cylinder, 2 Valves/Cyl.

Displacement: 808 cc (49.4 cubic inches)

Bore & Stroke: 70 mm x 70 mm (2.8 x 2.8 inches)

Full Throttle RPM Range: 5,000-6,000 RPM

Rated Power: 40 HP @ 5,500 RPM

Cooling System: Water Cooled

Fuel Delivery: Programmed Fuel Injection

Ignition System: MicroComputer Programmed

Starting System: Electric

Exhaust: Through Hub

Lubrication: Wet Sump

Trim Range: -4° to +16°

Tilt Range: 63°

Drive

Gear Ratio: 2.08:1

Gear Shift: F-N-R

Equipment

Alternator with voltage regulator: 22-Amp (275 watt)

Battery Charging Power: 17 Amps

Propeller: Optional

Power Tilt: NA

Power Trim & Tilt: Available

Gas Assisted Tilt: Available

Oil Pressure Alert: Standard

Temperature Alert: Standard

Rev-Limiter: Standard

Speedometer Pickup: Standard

Dimensions

Overall Width: 372 mm/14.7 inches

Transom Height

L Type: 508 mm/20 inches

X Type: NA

Dry Weight

L-Type: 97 kg/214 lbs.

X-Type: NA
